5-Axis CNC Machining Services

Achieve superior precision and produce intricate parts with highly complex geometries using our advanced 5-axis CNC machining capabilities. We deliver tight tolerances down to ±0.01 mm for your most demanding projects. Upload your designs today to receive an instant online quote.

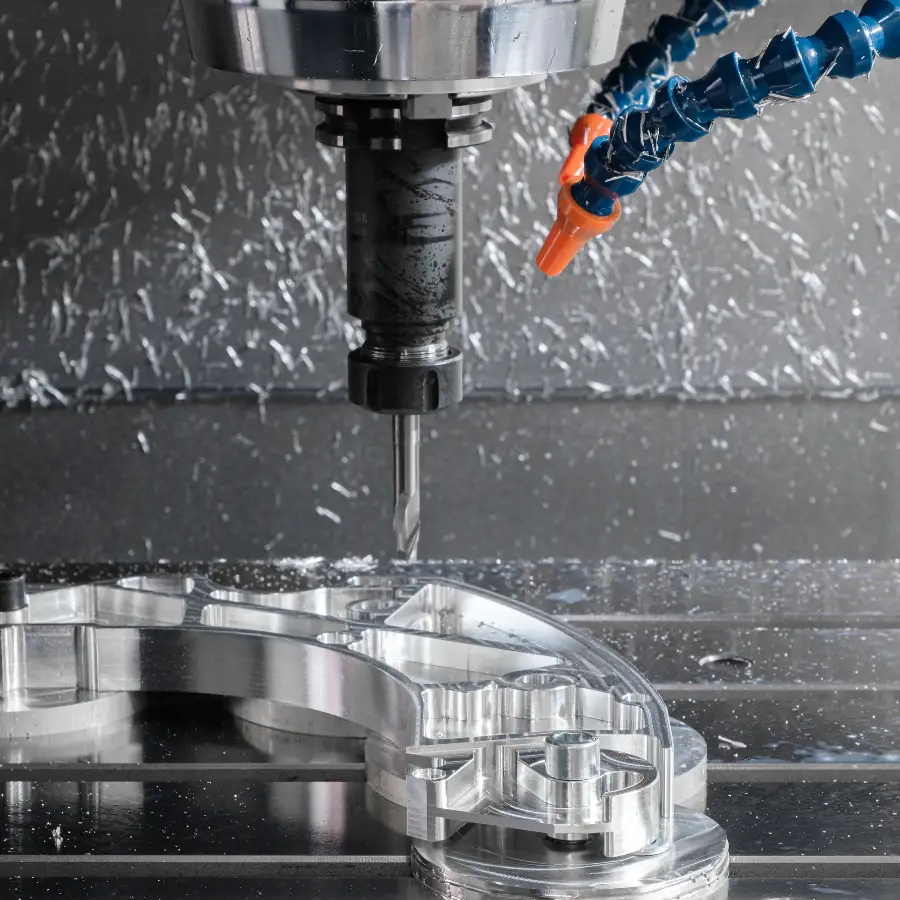

5-Axis Machining Excellence

Our 5-axis machining services deliver unmatched speed and versatility. Equipped with a vast array of advanced 5-axis CNC centers and supporting an extensive selection of materials, we are fully capable of producing superior 5-axis machined components.

Our seasoned engineering team and robust manufacturing infrastructure enable the rapid design and fabrication of intricate, time-critical parts. Leveraging world-class equipment and deep industry expertise, we utilize optimized setups to ensure the precise delivery of even the most complex geometries.

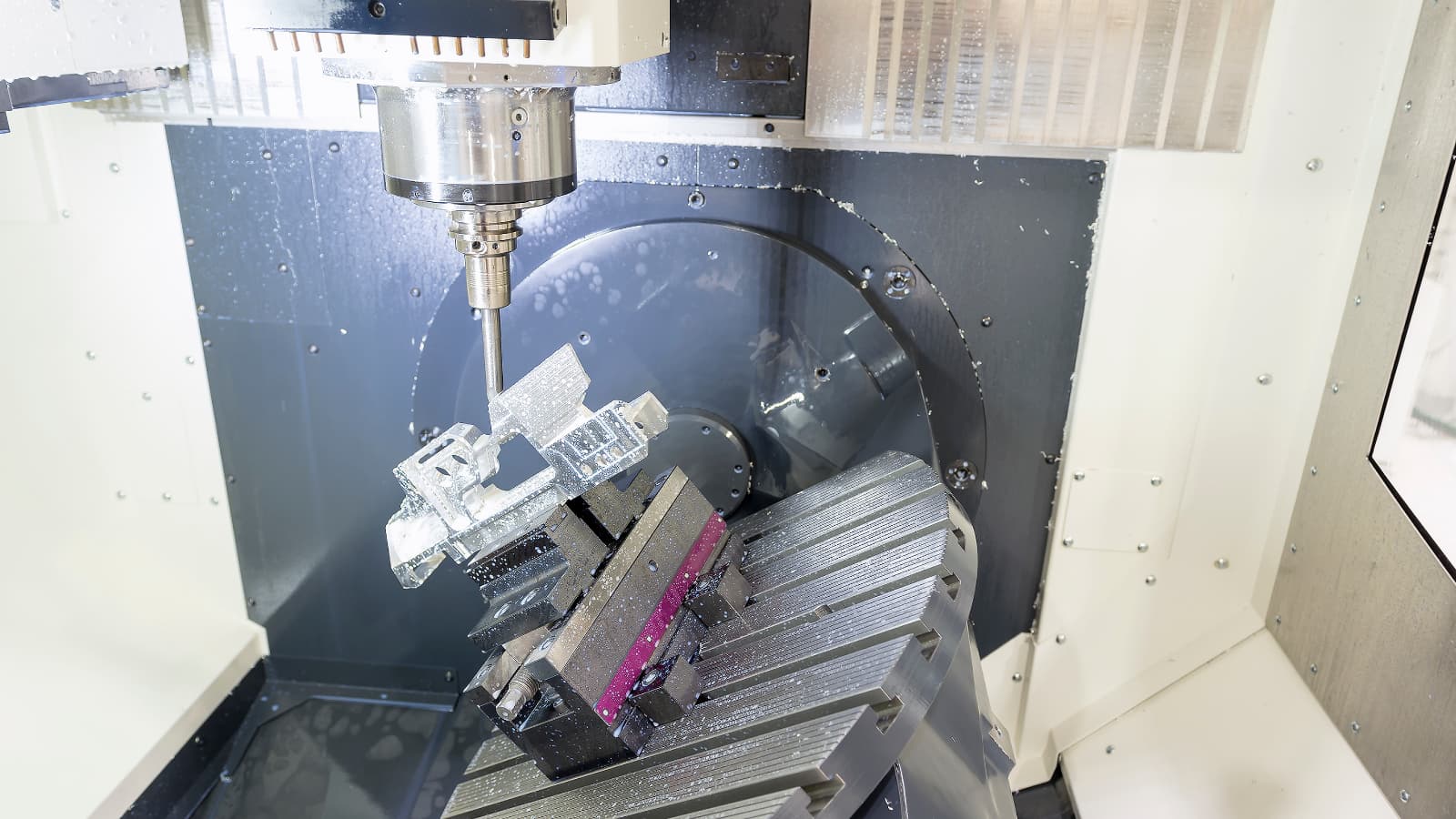

Understanding 5-Axis Machining

5-axis CNC machining is a sophisticated manufacturing technique that enables the cutting tool to move simultaneously along five distinct axes. This advanced capability is crucial for fabricating highly complex, precision-critical components with maximum efficiency and minimal setup changes. Sectors such as aerospace, automotive, and medical device manufacturing depend on 5-axis services to produce intricate parts that demand extreme accuracy and superior surface finishes.

3-Axis vs. 5-Axis Machining

The choice between 3-axis and 5-axis CNC systems significantly defines your manufacturing potential. 3-axis machining operates along the linear X, Y, and Z axes, making it the go-to solution for parts with simpler geometries and flat surfaces. Its cost-effectiveness and speed make it a staple in general automotive, construction, and basic aerospace applications.

Conversely, 5-axis machining introduces two additional rotational axes, enabling the cutting tool to approach the workpiece from virtually any angle. This flexibility is indispensable for crafting highly intricate components with complex contours and undercuts. Industries demanding ultra-high precision—such as aerospace, medical device manufacturing, and high-performance automotive—rely on 5-axis technology to meet stringent tolerance requirements.

While 5-axis machines entail higher initial investment, they often lower overall production costs by minimizing setup changes, reducing fixture requirements, and mitigating human error. In summary, 3-axis machining is perfect for straightforward designs, whereas 5-axis machining is the superior choice for complex, high-accuracy parts.

Materials for Custom 5-Axis CNC Machining

Our 5-axis milling services support an extensive selection of production-grade metals and alloys to suit your specific application needs. With access to over 50 high-performance options ranging from stainless steels, aluminum, and titanium to exotic superalloys, we ensure the perfect material match for your project. Explore our comprehensive list of 5-axis CNC machining materials today, or contact our engineering team directly to discuss your unique requirements and receive expert recommendations.

Metals & Plastics

Aluminum

Aluminum

We specialize in aluminum CNC milling services, with excellent machinability and corrosion resistance. Ideal for aerospace and automotive parts, our aluminum CNC milling service ensures precise and hi

Color:
Alloys:	Aluminum 6061, 6061-T6.Aluminum 2024.Aluminum 5052.Aluminum 5083.Aluminum 6063.Aluminum 6082.Aluminum 7075, 7075-T6.Aluminum ADC12 (A380)
Price:
Lead Time:

Copper

Copper

Copper is known for its superior electrical conductivity and thermal properties, making it perfect for electrical components and heat exchangers.

Color:
Alloys:	Copper C101(T2),Copper C103(T1),Copper C103(TU2),Copper C110(TU0),Beryllium Copper
Price:
Lead Time:

Brass

Brass

Brass is durable and has a low friction coefficient, which makes it suitable for fittings, tools, and musical instruments that require precision.

Color:
Alloys:	Brass C27400,Brass C28000,Brass C36000
Price:
Lead Time:

Bronze

Bronze

Bronze is highly resistant to corrosion and metal fatigue, favored for bearings, bushings, and marine hardware.

Color:
Alloys:	Tin Bronze
Price:
Lead Time:

Steel

Steel

Steel is an alloy with high tensile strength and durability, commonly used in construction and automotive industries for its robustness.

Color:
Alloys:	Steel 1018, 1020, 1025, 1045, 1215, 4130, 4140, 4340, 5140, A36.Die steel,Alloy steel,Chisel tool steel,Spring steel,High speed steel,Cold rolled steel,Bearing steel,SPCC
Price:
Lead Time:

Stainless Steel

Stainless Steel

Stainless steel is renowned for its corrosion resistance, making it a prime choice for medical devices and food processing equipment.

Color:
Alloys:	Stainless Steel SUS201,Stainless Steel SUS303,Stainless Steel SUS 304,Stainless Steel SUS316,Stainless Steel SUS316L,Stainless Steel SUS420,Stainless Steel SUS430,Stainless Steel SUS431,Stainless Steel SUS440C,Stainless Steel SUS630/17-4PH,Stainless Steel
Price:
Lead Time:

Magnesium

Magnesium

Magnesium is the lightest structural metal, offering high strength-to-weight ratios, perfect for automotive and aerospace applications where weight is critical.

Color:
Alloys:	Magnesium Alloy AZ31B,Magnesium Alloy AZ91D
Price:
Lead Time:

Titanium

Titanium

Titanium boasts the highest strength-to-density ratio among metals, highly resistant to corrosion and fatigue, ideal for aerospace, medical, and marine applications.

Color:
Alloys:	Titanium Alloy TA1,Titanium Alloy TA2,Titanium Alloy TC4/Ti-6Al 4V
Price:
Lead Time:

5-Axis CNC Machining Capabilities

Our ISO 9001 certification shows that we fabricate 5-axis milled parts to meet the tightest tolerance requirements. Our standard tolerance for CNC-milled plastics is ISO-2768-m and ISO-2768-f for metals. Get high-quality and precise complex parts with top-notch dimensional stability.

	Description
Maximum Part Size	4000×1500×600 mm
Minimum Part Size	5 x 5 x 5 mm
General Tolerances	Within ±0.002 mm
Lead Time	For standard operations, lead times can be as short as 2-3 days, while more complex projects might require up to 2 weeks.

5 Axis CNC Machining
Design Guidelines

	Recommended Size
Minimum Feature Size	Minimum feature size should be no less than 0.5 mm in width or depth to ensure structural integrity.
Linear Dimension	Maintain a precision within ±0.005 mm for linear dimensions to ensure accuracy across the machined part.
Hole Diameters (not reamed)	Holes can be machined with diameters starting from 1 mm up to 40 mm without reaming for precision sizing.
Shaft Diameters	Shaft diameters should range from 2 mm to 300 mm, considering the tool accessibility and torque requirements.
Threads and Tapped Holes	Threads from M2 to M24 can be machined. Ensure to provide adequate relief at the bottom of tapped holes.
Text	Minimum text height of 1.5 mm with a depth of 0.5 mm for clarity after machining.

Cesar 5-axis Machine Shop

Discover our exceptional range of high-performance 5-axis machining centers, spanning from premier horizontal models to top-tier vertical units. Boasting a fleet of nine advanced 5-axis CNC machines, we possess the capacity and expertise to execute large-scale production runs without compromising on precision or efficiency. These cutting-edge systems, paired with our team of skilled technicians, empower us to address diverse manufacturing challenges across multiple industries. Rely on our services to deliver outcomes that align perfectly with your specific requirements.

Reach out to Cesar today for a complimentary quote or further details on our 5-axis CNC machining capabilities. We provide tailored solutions to produce precise, durable, and robust components in a wide array of shapes and sizes, ensuring your project needs are fully met.

Why
Choose Us

With Cesar’s CNC milling service, you’re investing in more than just machinery. You get the promise of impeccable precision, adherence to tight schedules, and the support of seasoned professionals.

/01

Unmatched
Precision

Our advanced milling ensures tight tolerances down to ±0.01mm, guaranteeing seamless assembly and operational excellence.

/02

Fast Turnaround
Time

Leveraging domestic workshops and state-of-the-art machinery, we deliver rapid lead times to keep your projects on schedule.

/03

Expert Support
Support

Our seasoned engineers provide end-to-end guidance, optimizing your designs for maximum quality and efficiency.

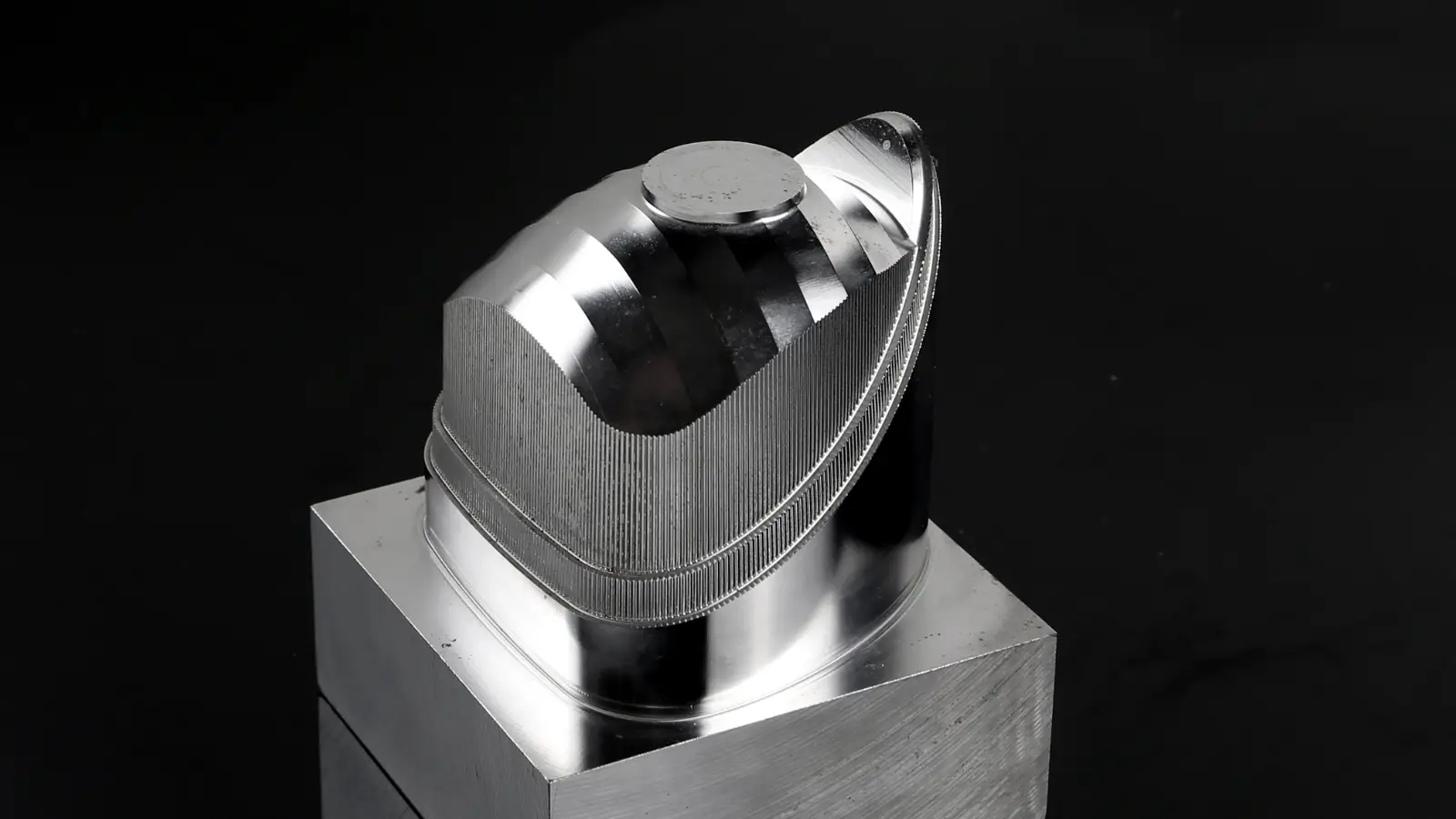

Simultaneous 5 Axis vs 3+2 Axis CNC Machining

Simultaneous 5-Axis Machining

Fast, effective, and continuous 5-axis CNC machining with improved transitioning and surface quality. Here, we use 5-axis machining center that can continuously adjust the movements on all five axes without stopping. Our 5-axis CNC machining has intelligent functionalities to ensure efficient continuous processes and transitions.

3+2 Axis Machining

Take advantage of the optimal 3+2 axis machining technology for your unique applications. The process keeps the part fixed in a specific orientation to allow the usual 3-axis machining process. Our 3+2 axis machining uses shorter, more rigid cutting tools to offer your parts better dimensional stability. Get complex CNC machined parts with tight tolerances at lower costs and cycle time.

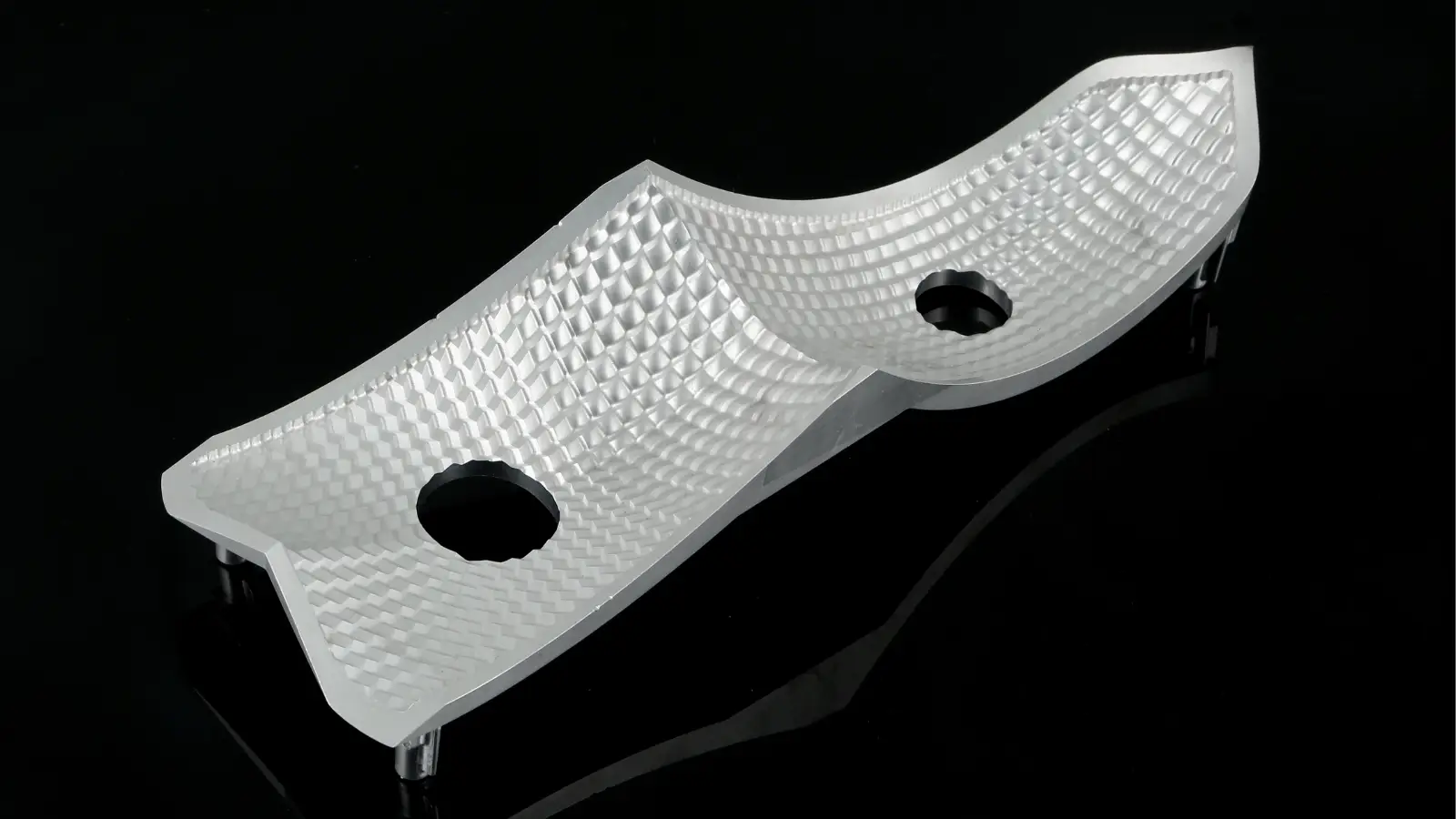

Trunnion-Style vs Swivel-Rotate-Style 5-Axis Machining

Trunnion-style machining centers

Feature a fixed table and a spindle that moves and rotates along two axes. This design allows for the machining of complex parts from multiple angles in a single setup, making it highly efficient for heavy or larger workpieces due to the stable support from the table.

Swivel-Rotate-Style machining

Also known as a table-table configuration, involves the part being affixed to a table that rotates and tilts, while the spindle remains in a fixed position. This style is particularly advantageous for intricate parts that require high precision, as it offers excellent accessibility to various part features and can handle smaller, more delicate components effectively.

Advantages of 5 Axis CNC Machining

5-axis CNC machining offers significant advantages over traditional 3-axis machining, making it a valuable choice for complex and precision-demanding projects.

Complex Geometries: Allows for the machining of intricate designs and complex shapes from any angle, reducing the need for multiple setups.
Enhanced Accuracy: Minimizes handling errors associated with multiple setups, improving the overall accuracy of the finished product.
Improved Surface Finish: The tool can maintain an optimal angle relative to the surface, enhancing the quality of the surface finish and reducing the need for secondary finishing operations.
Use of Shorter Cutting Tools: Enables closer positioning of the tool to the workpiece, which reduces tool deflection and vibration, leading to more precise cuts.
Increased Productivity: Reduces overall production time by combining what traditionally requires several machine setups into a single setup.
Material Conservation: Efficient tool paths and advanced control minimize material waste, which is especially beneficial when working with expensive materials.

Applications of 5 Axis CNC Machining

5-axis CNC machining is extensively utilized for its versatility in creating various part types across multiple industries.

Aerospace Components: Crafting airframe structures and engine parts that require complex contours and must withstand extreme conditions. Examples include turbine disks, compressor blades, and swivel bearings.
Automotive Parts: Producing transmission gears, engine mounts, and complex hub assemblies. These parts often involve intricate features and deep pocket cuts, which 5-axis CNC machining handles efficiently.
Medical Implants: Manufacturing bespoke medical implants such as hip joints and cranial plates. These require highly customized shapes and smooth finishes to match patient anatomy.
Die and Mold Making: Creating complex molds, dies, and fixtures that are crucial for the mass production of other products. This includes injection molds and stamping dies with detailed features and tight tolerances.
Marine Parts: Building parts for boats and other marine vehicles, such as propellers and hull components. These parts often have complex designs and require precise machining to ensure performance and durability in harsh environments.
Energy Sector Components: Machining parts used in power generation equipment, such as wind turbine hubs and solar panel frames. These require high precision to ensure efficiency and long-term reliability.
